Attenuation of X-rays

When the x-ray passes through an absorber (e.g., oral tissues), it gets differentially absorbed by what constitutes the absorber and the thickness of each component. When the x-ray beam exits this absorber, it will demonstrate varying intensity levels. This variation will be recorded on a radiographic receptor as different densities generating the radiographic contrast. Thick absorbers such as aluminum will have a brighter density than the densities that thin absorbers will produce. (Figure 8).^1,2,3,4,6

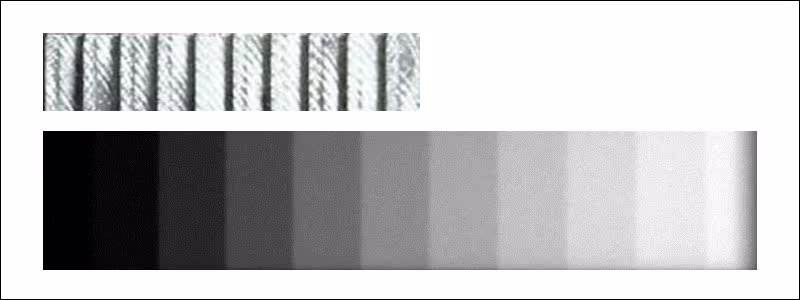

Figure 8. Photo and radiographic image of an aluminum stepwedge. The thin steps are darker than the thick steps.
